1. Run "firmsms" with administrator priviledge being sure that you have closed SMS commander.


2. You should see:


******************************************

*    *

*    ZEROONE LTD 01Mechatronics.com    *

*    Firmware Updater [Short Description] *

*    *

******************************************

Please select the COM port from the combobox that will be used for the firmware update.


In order for the firmware to be uploaded to the Supermodified Controller, power to the device must be applied exactly prior to starting the firmware update.


Power down the device now.

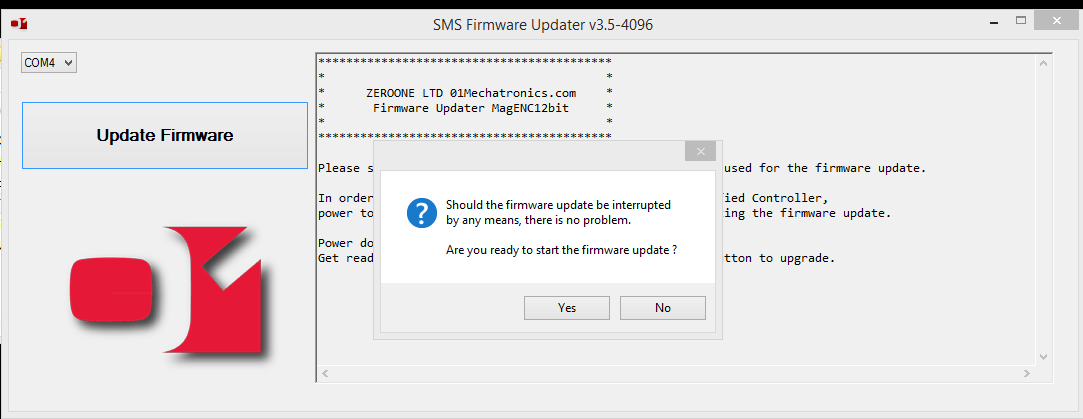

3. Select the COM that the RS485 adaptor is connected, and press "Update Firmware". Then you will be issued the following:




4. Select "Yes" BUT:


Before pressing Yes you should be prepared to have the negative (-) of the power out of the breadboard and when pressing Yes simultaneously to power the negative pole so as you perfom "something like a reset" to the processor.

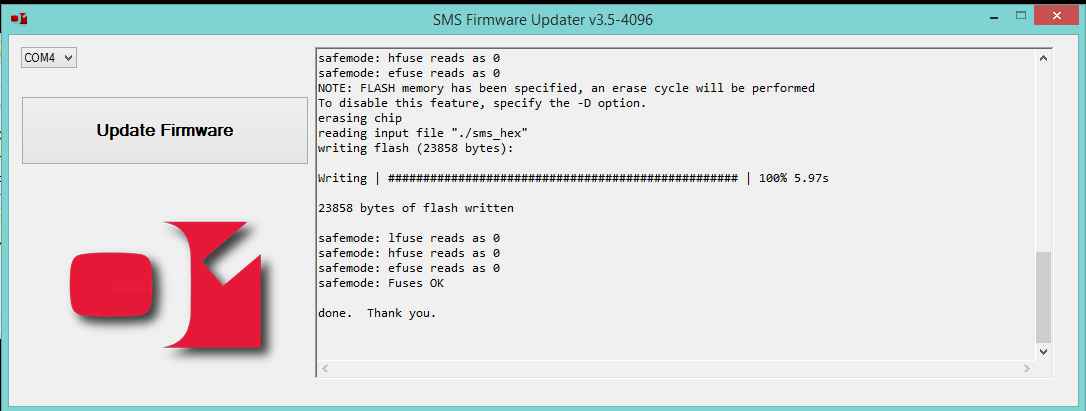

THIS IS VERY IMPORTANT. Try it one-two times and you will achieve it. If the device is flashed then you will have the following screenshot:




If you see the above then your device is ready to test!


Please inform us if everything is OK!
